i8250 Class Reference

i8250 serial UART. More...

#include <i8250.h>

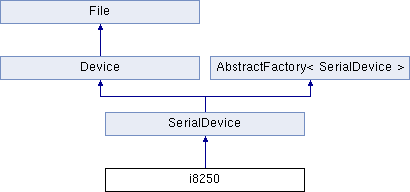

Inheritance diagram for i8250:

Public Member Functions
	i8250 (const u32 irq, const u16 base)
	Constructor function. More...
virtual FileSystem::Result	initialize ()
	Initializes the i8250 serial UART. More...
virtual FileSystem::Result	interrupt (const Size vector)
	Called when an interrupt has been triggered for this device. More...
virtual FileSystem::Result	read (IOBuffer &buffer, Size &size, const Size offset)
	Read bytes from the device. More...
virtual FileSystem::Result	write (IOBuffer &buffer, Size &size, const Size offset)
	Write bytes to the device. More...
Public Member Functions inherited from SerialDevice
	SerialDevice (const u32 irq)
	Constructor. More...
u32	getIrq () const
	Get interrupt vector. More...
Public Member Functions inherited from Device
	Device (const u32 inode, const FileSystem::FileType type)
	Constructor. More...
virtual	~Device ()
	Destructor. More...
virtual const String &	getIdentifier () const
	Get unique device identifier. More...
Public Member Functions inherited from File
	File (const u32 inode, const FileSystem::FileType type=FileSystem::RegularFile, const UserID uid=ZERO, const GroupID gid=ZERO)
	Constructor function. More...
virtual	~File ()
	Destructor function. More...
u32	getInode () const
	Get inode number. More...
FileSystem::FileType	getType () const
	Retrieve our filetype. More...
virtual FileSystem::Result	status (FileSystem::FileStat &st)
	Retrieve file statistics. More...
virtual bool	canRead () const
	Check if the File has data ready for reading. More...
virtual bool	canWrite () const
	Check if the File can be written to. More...

Private Types
enum	Constants {   TRANSMIT = 0, RECEIVE = 0, DIVISORLOW = 0, DIVISORHIGH = 1,   RXREADY = 1, IRQCONTROL = 1, IRQSTATUS = 2, FIFOCONTROL = 2,   LINECONTROL = 3, MODEMCONTROL = 4, LINESTATUS = 5, TXREADY = 0x20,   DLAB = 0x80, BAUDRATE = 9600 }
	Constants used to communicate with the UART. More...

Additional Inherited Members
Static Public Member Functions inherited from AbstractFactory< SerialDevice >
static SerialDevice *	create ()
	Abstract function to create an instance of T. More...
Static Public Attributes inherited from SerialDevice
static u32	inodeNumber = 2
	Keeps track of inode number for SerialDevices. More...
Protected Attributes inherited from SerialDevice
const u32	m_irq
	interrupt vector More...
Arch::IO	m_io
	I/O instance. More...
Protected Attributes inherited from Device
String	m_identifier
	Unique identifier for this Device. More...
Protected Attributes inherited from File
const u32	m_inode
	Inode number. More...
const FileSystem::FileType	m_type
	Type of this file. More...
UserID	m_uid
	Owner of the file. More...
GroupID	m_gid
	Group of the file. More...
FileSystem::FileModes	m_access
	Access permissions. More...
Size	m_size
	Size of the file, in bytes. More...

Detailed Description

i8250 serial UART.

Definition at line 36 of file i8250.h.

Member Enumeration Documentation

Constants

enum i8250::Constants

private

Constants used to communicate with the UART.

Enumerator
TRANSMIT
RECEIVE
DIVISORLOW
DIVISORHIGH
RXREADY
IRQCONTROL
IRQSTATUS
FIFOCONTROL
LINECONTROL
MODEMCONTROL
LINESTATUS
TXREADY
DLAB
BAUDRATE

Definition at line 43 of file i8250.h.

Constructor & Destructor Documentation

i8250()

i8250::i8250	(	const u32	irq,
		const u16	base
	)

Constructor function.

Parameters

irq	Interrupt vector
base	I/O base port

Definition at line 29 of file i8250.cpp.

References Device::m_identifier, and SerialDevice::m_io.

Member Function Documentation

initialize()

FileSystem::Result i8250::initialize ( )

virtual

Initializes the i8250 serial UART.

Returns

Result code

Reimplemented from Device.

Definition at line 36 of file i8250.cpp.

References BAUDRATE, DisableIRQ, DIVISORHIGH, DIVISORLOW, DLAB, EnableIRQ, FIFOCONTROL, IRQCONTROL, isKernel, LINECONTROL, SerialDevice::m_io, SerialDevice::m_irq, MODEMCONTROL, ProcessCtl(), SELF, and FileSystem::Success.

Referenced by kernel_main().

interrupt()

FileSystem::Result i8250::interrupt ( const Size  vector )

virtual

Called when an interrupt has been triggered for this device.

Parameters

vector

Vector number of the interrupt.

Returns

Result code

Reimplemented from Device.

Definition at line 72 of file i8250.cpp.

References EnableIRQ, SerialDevice::m_irq, ProcessCtl(), SELF, and FileSystem::Success.

read()

FileSystem::Result i8250::read ( IOBuffer &  buffer, Size &  size, const Size  offset  )

virtual

Read bytes from the device.

Parameters

buffer	Input/Output buffer to output bytes to.
size	Maximum number of bytes to read on input. On output, the actual number of bytes read.
offset	Offset inside the file to start reading.

Returns

Result code

Reimplemented from File.

Definition at line 78 of file i8250.cpp.

References IOBuffer::bufferedWrite(), LINESTATUS, SerialDevice::m_io, RECEIVE, FileSystem::RetryAgain, RXREADY, and FileSystem::Success.

write()

FileSystem::Result i8250::write ( IOBuffer &  buffer, Size &  size, const Size  offset  )

virtual

Write bytes to the device.

Parameters

buffer	Input/Output buffer to input bytes from.
size	Maximum number of bytes to write on input. On output, the actual number of bytes written.
offset	Offset inside the file to start writing.

Returns

Result code

Reimplemented from File.

Definition at line 104 of file i8250.cpp.

References LINESTATUS, SerialDevice::m_io, FileSystem::RetryAgain, FileSystem::Success, TRANSMIT, and TXREADY.

---

The documentation for this class was generated from the following files:

• server/serial/i8250.h
• server/serial/i8250.cpp
